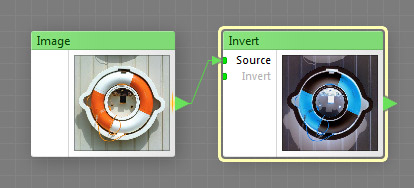

The Invert component inverts the image provided by the Source input. When a pixel is inverted, the value of its every color channel (R, G and B) is converted to its opposite value (0.05 to 0.95, 0.25 to 0.75, etc.) This operation affects only the color of the source image, it does not affect its alpha channel. This is a map component, it can be located in the Adjustments category on the Components Bar.
Provides the source image to be inverted. This is a required input – in order to make the Invert component work, this input must be connected.
Invert: Map Input
When checked, inverts the source image. When this checkbox is unchecked, the inversion is not performed. When a map component is connected to this input, the state of the checkbox is determined separately for different image areas by the brightness level of the image supplied by that component. The brightness level of 0 to 50 corresponds to unchecked Invert, and the level of 50 to 100 corresponds to checked Invert.
