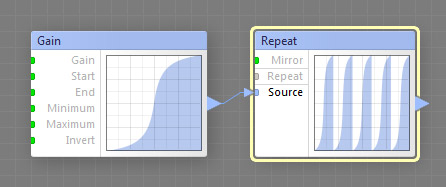

The Repeat component takes the visible range of the source curve and repeats this segment the specified number of times. Unlike the Frequency component, it repeats only the visible segment of the curve discarding the curve parts beyond the visible range, while Frequency preserves them by scaling the entire domain of the source function. This is a curve component, it can be located in the Curve Ops category on the Components Bar.
Mirror: Map Input
When turned on, every second period of the resulting curve is mirrored along its middle vertical axis. If Repeat is set to a value equal or less than 1, the effect is not visible. When a map component is connected to this input, the state of the checkbox is determined separately for different image areas by the brightness level of the image supplied by that component. The brightness level of 0 to 50 corresponds to unchecked Mirror, and the level of 50 to 100 corresponds to checked Mirror.
Defines how many times the visible segment of the source curve is repeated. This parameter accepts fractional values.
Source: Curve Input, Required
Provides the source curve to be repeated. This is a required input – in order to make the Repeat component work, this input must be connected.
