This component is obsolete and its use in filters is not recommended. Use the recent version of the component.

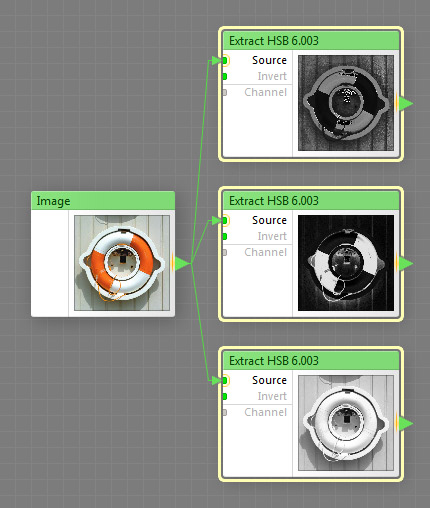

The Extract HSB component extracts an H, S or B channel from the source image or color according to the HSB color model. H, S and B stand for hue, saturation and brightness respectively. The channels are extracted as grayscale images, where light areas correspond to higher channel values, and dark areas correspond to lower channel values. For more information on the HSB color model (also known as HSV), see this Wikipedia article on the HSB color model. Extract HSB is a map component, it can be located in the Channels category on the Components Bar. This component can output HDR colors.
Provides the source image or color from which the specified channel will be extracted. This input can accept HDR colors.
Invert: Map Input
Inverts the extracted channel. When a map component is connected to this input, the state of the checkbox is determined separately for different image areas by the brightness level of the image supplied by that component. The brightness level of 0 to 50 corresponds to unchecked Invert, and the level of 50 to 100 corresponds to checked Invert.
Specifies a channel to extract: H, S, or B.
