Flip 6.002

This component is obsolete and its use in filters is not recommended. Use the recent version of the component.

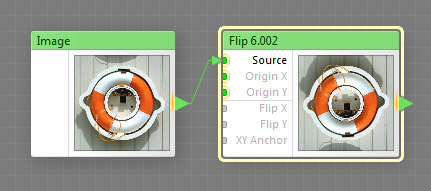

The Flip component flips the source image over the axis that goes through the point defined by the Origin X and Origin Y inputs. This is a map component, it can be located in the Transform category on the Components Bar. This component can output HDR colors.

Source: Map Input (HDR), Required

Provides the source image. This is a required input – in order to make Flip work, this input must be connected. This input can accept HDR colors.

Origin X and Y: Map Inputs (HDR)

These inputs define the coordinates of the origin point through which the flip axis goes. The way these coordinates are interpreted is defined by the XY Anchor input. Since Origin X and Origin Y are map inputs, their values can be controlled separately for different image areas by connecting a map component. These inputs can accept HDR colors.

Flip X: Numeric Input

Specifies whether the image should be flipped over the horizontal axis.

Flip Y: Numeric Input

Specifies whether the image should be flipped over the vertical axis.

XY Anchor: Numeric Input

Determines how the coordinate values supplied by Origin X and Origin Y inputs are interpreted. For more information, see How XY Anchor Works.
