This component is obsolete and its use in filters is not recommended. Use the recent version of the component.

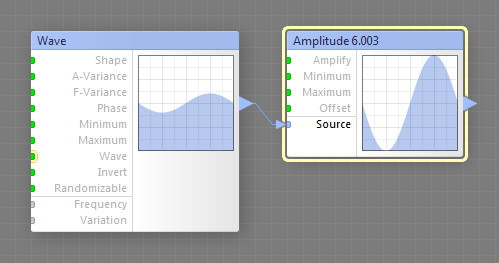

The Amplitude component modifies the output range of the source curve by adjusting its amplitude and offset. This is a curve component, it can be located in the Curve Ops category on the Components Bar.
Amplify: Map Input
Amplifies the source curve. If the resulting output range of the curve exceeds the maximum output range, the curve is clipped accordingly (the clipping is not visible when Minimum, Maximum and Offset are set to default values). Since Amplify is a map input, its value can be controlled separately for different image areas by connecting a map component to this input.
Minimum and Maximum: Map Inputs
Minimum and Maximum define the output range of the curve. When the Minimum value is greater than the Maximum value, they get reversed – the Minimum parameter defines the Maximum value and vice versa. This is needed to avoid turning the curve upside down. Since Minimum and Maximum are map inputs, their values can be controlled separately for different image areas by connecting a map component to any of these inputs.
Offset: Map Input
Shifts the curve vertically. Positive values shift the curve upwards, negative values shift it downwards. The Offset value is added to the output level of the curve after Amplitude, Minimum and Maximum have been applied. Since Offset is a map input, its value can be controlled separately for different image areas by connecting a map component to this input.
Source: Curve Input, Required
Provides the source curve. This is a required input – to make the Amplitude component work, this input must be connected.
