This component is obsolete and its use in filters is not recommended. Use the recent version of the component.
The Switch component is used as a selector – it outputs one of its Source inputs depending on the value of the Selector input. This is a map component, it can be located in the Processing category on the Components Bar.
Source 1, Source 2, ..., Source 12: Map Inputs
These inputs provide the colors or images one of which will be sent to the component's output.

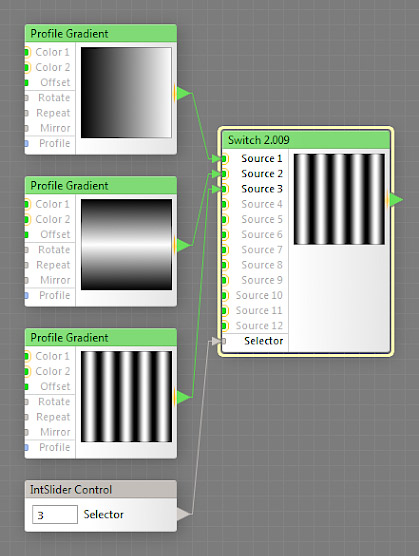

Specifies which of the source inputs goes to the output. For example, if Selector value is 3 then the color or image supplied by the Source 3 input will be sent to the output.
